Manufacturer & Exporter of Cuplock Standard

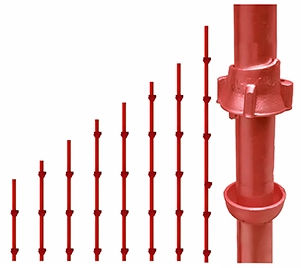

Cuplock Standard

Premium Manufacturer & Exporter of Cuplock Standard in Ludhiana, Punjab, India. We deliver the primary vertical support component in modular scaffolding systems, designed for rapid and secure assembly. Featuring a unique locking mechanism with fixed bottom cups and sliding top cups, it allows for the quick connection of up to four horizontal members simultaneously. These standards are manufactured from high-grade steel, typically finished with hot-dip galvanizing for superior corrosion resistance and durability in demanding construction environments.

Key Features of Cuplock Standard

• Fabricated out of 48.3mm OD x 3.2mm thick high-grade steel tube
• All standards have the lower part of the cups at 0.5m intervals with captive rotating top-cups securing up to 4 components
• The lowest bottom cup is welded at 80mm from the bottom end and the highest at 420mm from the upper end
• Every Standard is joined vertically using a Spigot
• EN 74-1 compliant | ISO 9001:2015 certified
• Hot-dip galvanized finish – superior corrosion resistance
• Quick cuplock mechanism – no loose parts

Design & Engineering of Cuplock Standard

The cuplock standard is engineered with precision-welded bottom cups and sliding top cups that lock into place with a simple hammer blow. This design allows for rapid assembly and dismantling, significantly reducing labor time and costs. The 48.3mm diameter and 3.2mm wall thickness provide exceptional load-bearing capacity, making these standards suitable for heavy-duty scaffolding applications in construction, infrastructure, and industrial projects.

Key Applications of Cuplock Standard

• High-Rise Construction: Vertical support for building projects
• Bridges & Flyovers: Heavy-load scaffolding systems
• Industrial Plants: Maintenance and access platforms
• Shipbuilding: Support structures in dockyards
• Infrastructure Projects: Tunnels, dams, and power plants
