Manufacturer of Cuplock Intermediate Transom

Cuplock intermediate transom manufacturer – Robust Scaffolding delivers heavy-duty intermediate transoms with OD 48.3mm x 3.2mm thickness. EN 74 certified, hot-dip galvanized. Available in lengths 0.6m to 2.5m.

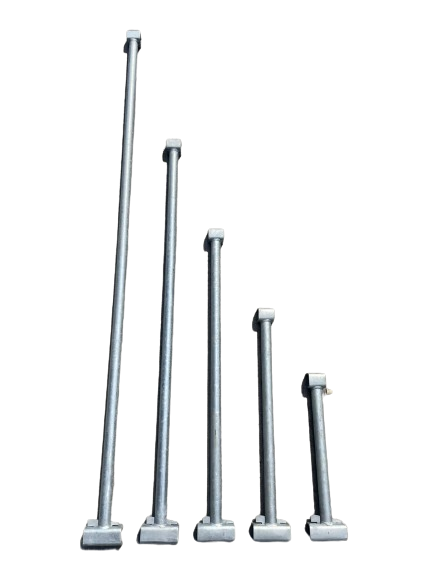

Cuplock Intermediate Transom - Leading Cuplock Intermediate Transom Manufacturer

Product Overview

  • Outer Diameter: 48.3mm (standard scaffolding tube)
  • Wall Thickness: 3.2mm high-grade steel
  • Finish: Hot-dip galvanized (ZD ≥ 80µm)
  • Load Capacity: Enhanced intermediate support
  • Certification: EN 74-1, ISO 9001:2015
  • Features: Intermediate positioning for decking support
  • Assembly: Rapid cuplock connection – ideal for heavy loads
Available in lengths: 0.6m | 0.9m | 1.0m | 1.2m | 1.3m | 1.6m | 1.8m | 2.5m

Technical Specifications – Cuplock Intermediate Transom

Product Code Description Size (mm) Weight (KG)
FCC0325 Cuplock Intermediate Transom 2.5 Mtr OD 48.3mm X 3.2mm THK 9.50 KG
FCC0318 Cuplock Intermediate Transom 1.8 Mtr OD 48.3mm X 3.2mm THK 7.30 KG
FCC0316 Cuplock Intermediate Transom 1.6 Mtr OD 48.3mm X 3.2mm THK 6.90 KG
FCC0313 Cuplock Intermediate Transom 1.3 Mtr OD 48.3mm X 3.2mm THK 6.20 KG
FCC0312 Cuplock Intermediate Transom 1.2 Mtr OD 48.3mm X 3.2mm THK 5.20 KG
FCC0310 Cuplock Intermediate Transom 1.0 Mtr OD 48.3mm X 3.2mm THK 4.10 KG
FCC0309 Cuplock Intermediate Transom 0.90 Mtr OD 48.3mm X 3.2mm THK 3.69 KG
FCC0306 Cuplock Intermediate Transom 0.60 Mtr OD 48.3mm X 3.2mm THK 2.46 KG

Request a Quote – Cuplock Intermediate Transom

Why Choose Our Cuplock Intermediate Transom?

  • Precision engineered intermediate members
  • 3.2mm wall thickness – high strength
  • Hot dip galvanized (ZD > 80µm)
  • Enhanced load distribution for decking
  • Ideal for heavy-duty scaffolding platforms
  • Compatible with all cuplock systems
  • EN 74-1 Compliant | ISO 9001:2015
  • Trusted cuplock intermediate transom manufacturer in India
